Vision
Deliver the ultimate finish on your castings with almost immediate results
High-Performance
Supreme Surface Finish
Carbon Additive
Nanotechnology
USP
Questioning the status-quo at every stage of development, we set out to develop a revolutionary new age material in Nanokarb. A high performance material that can be used along with your existing carbon additive or as its replacement - Nanokarb ensures supreme finish on your castings in record time!
Nanokarb technology
Nanotechnology based carbon additive for green sand used to reduce VOC and carbon emission by a minimum of 50% from current levels
The only engineered carbon for green sand in the world (patent pending)
Ceramic nanoparticles impregnated into quasi graphitic carbon to get desired properties
Forms a non-wetting barrier between the molten metal and sand, leading to an excellent finish
Nanokarb Properties
With almost 0% Volatile Matter @ 400℃, we have drastically reduced VOC
Volatile Matter
@ 400℃ - < 0.5%
Volatile Matter
@ 925℃ - < 10%
Nanoparticle concentration - 10-20%
Moisture < 5%
Sieve size - 100% passing through standard BSS 12 mesh
Nanokarb Advantages
Ultimate Surface finish
Minimum 10% reduction of Bentonite
50% - 80% reduction of carbon expected, with an assurance of minimum 25% pruning.
Reduced shot-blasting time/ shots consumed
Reduced expansion and erosion defects
Reduced Burn-on / Metal penetration defects
Eliminates blowholes, pinholes and sub surface porosity arising out of carbon
Gallery

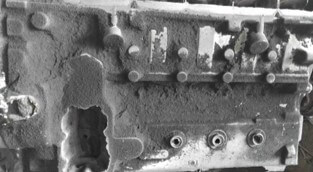

Before Nanokarb with mould coating

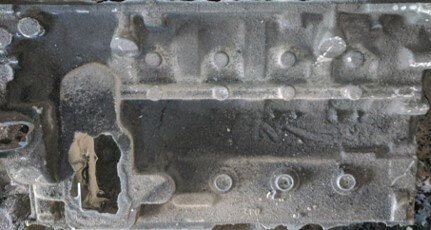

With Nanokarb - NO mould coating

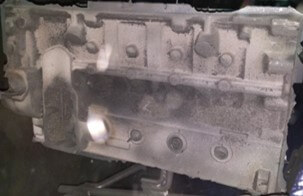

Before Nanokarb with mould coating after shot blasting

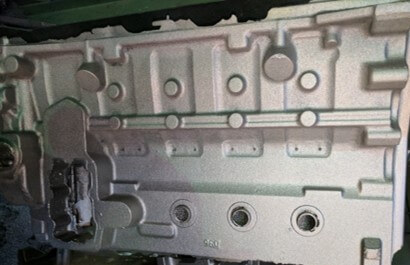

With Nanokarb without mould coating after shot blasting image

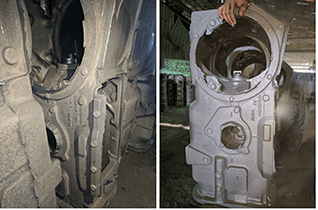

Before and after using Nanokarb
Surface finish with Nanokarb

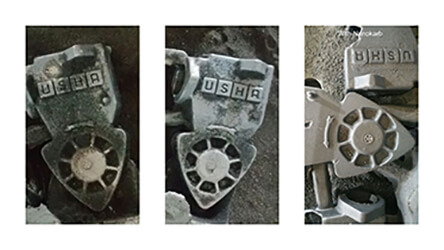

Nanokarb Comparison
After shot blasting
Surface finish with Nanokarb
Surface finish with Nanokarb
Surface finish with Nanokarb
Surface finish with Nanokarb
